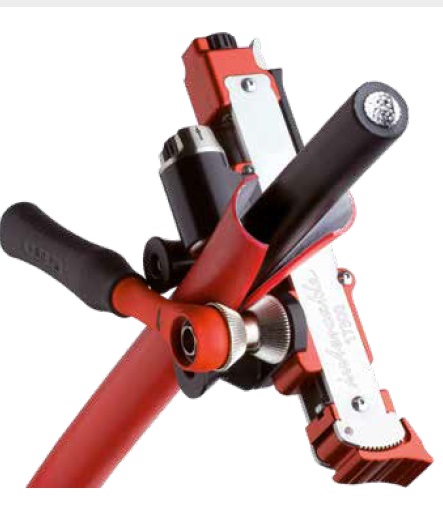

AMX-Universal Cable Stripper with HD Outer Sheath

Designed to strip aluminium armed outer sheaths of LV/MV
Application range : ¸ 16 - 54 mm
Insulation thickness : 0 - 5 mm
suggested application : Polyethylene / fully bonded aluminium outer insulation

• Application range: Ø 16 - 54 mm
• Insulation thickness: 0 - 5 mm
• Suggested application: Polyethylene / fully bonded
• Designed to strip aluminium armed outer sheaths of LV/MV

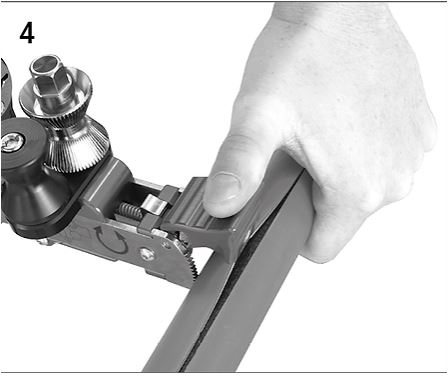

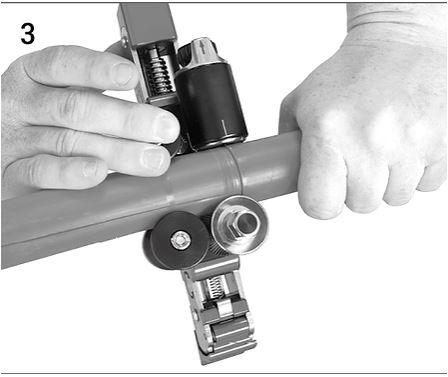

• Suitable for longitudinal and circular cutting
• Additional claw to break hard insulation

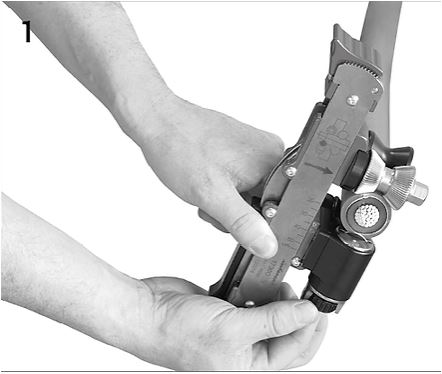

• The initial setting of the correct cable diameter is done by adjusting the handle

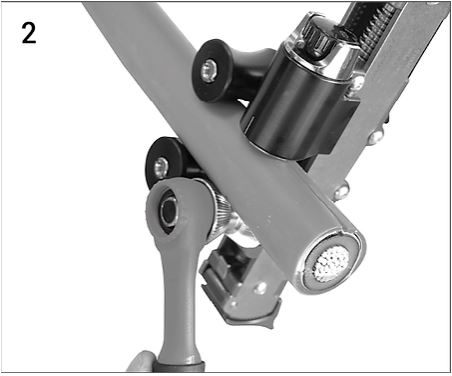

• The fixation of the device on the cable is performed by a quick-release system with toggle lever princip
• The cutting depth is adjustable in steps of 0,1 mm
• Switchable between longitudinal and circular cut
• Maximal rotation diameter of the tool: 300 mm
